C8051F仿真器 下载器 兼容 EC3 EC5 EC6 ML-EC3 U-EC5 U-EC6

基于Silabs公司原厂生产的U-EC3仿真器而设计生产
- 支持在线仿真以及下载的开发工具
- 编程器具有的USB2.0接口、免安装驱动程序、硬件加强型保护功能(减少使用不当造成的硬件损坏率)
- 可使用专用软件快速将程序代码烧录到C8051F MCU中,和Silabs公司UDA调试器、国内的EC3/EC5/EC6调试器兼容
售价:
¥ 58.00
原价: ¥108.00

服务:  7天无忧退货,一月包换,一年保修, 48小时快速发货!

收藏
数量:
  • 购买链接:

    https://item.taobao.com/item.htm?ft=t&id=3226953789

    特别提醒:

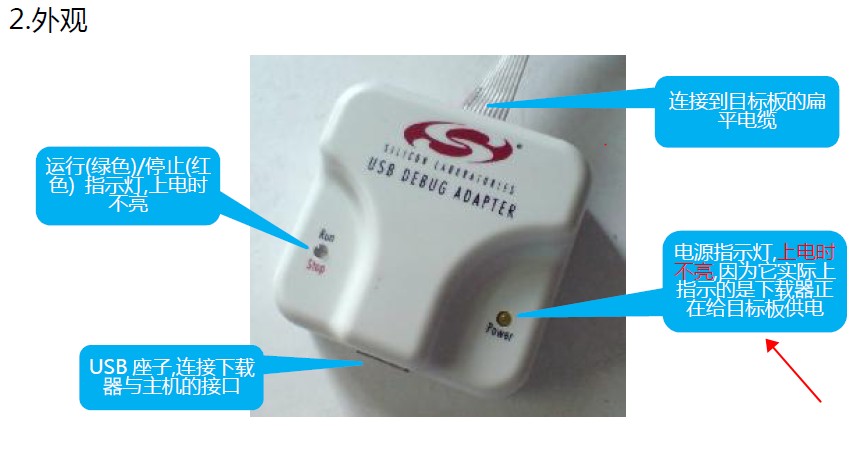

    只接USB线没有在软件中设置通过仿真器给目标板供电的情况下仿真器上电源指示灯是不亮,因为它实际上指示的是下载器正在给目标板供电指示,不是仿真器通电指示!!





    产品简介

    · 基于Silabs公司原厂生产的U-EC3仿真器而设计生产
    - 支持在线仿真以及下载的开发工具
    - 编程器具有的USB2.0接口、免安装驱动程序、硬件加强型保护功能(减少使用不当造成的硬件损坏率)
    - 可使用专用软件快速将程序代码烧录到C8051F MCU中,和Silabs公司UDA调试器、国内的EC3/EC5/EC6调试器兼容

    · 支持的软件
    - 直接支持Silabs官方软件Silicon Labrary IDE或集成了烧写驱动的Keil编译软件

    可与IAR Embedded Workbench for MCS-51、Keil μVsion2/3、Silicon Laboratories IDE软件无缝连接调试。

    · 支持的器件
    - 支持全系列C8051F单片机

    JTAG接口 C8051F00x C8051F01x C8051F02x C8051F04x C8051F06x C8051F12x C8051F2xx
    C2接口 C8051F3xx C8051F41x C8051F5xx C8051F7xx C8051F8xx C8051F9xx

    支持C8051F全系列单片机(JTAG或C2接口):
    ·C8051F000/C8051F001/C8051F002
    ·C8051F005/C8051F006/C8051F007
    ·C8051F010/C8051F011/C8051F012
    ·C8051F015/C8051F016/C8051F017
    ·C8051F018/C8051F019
    ·C8051F020/C8051F021/C8051F022/C8051F023
    ·C8051F040/C8051F041/C8051F042/C8051F043
    ·C8051F044/C8051F045/C8051F046/C8051F047
    ·C8051F060/C8051F061/C8051F062/C8051F063
    ·C8051F064/C8051F065/C8051F066/C8051F067
    ·C8051F120/C8051F121/C8051F122/C8051F123
    ·C8051F124/C8051F125/C8051F126/C8051F127
    ·C8051F130/C8051F131/C8051F132/C8051F133
    ·C8051F206/C8051F220/C8051F221/C8051F226
    ·C8051F230/C8051F231/C8051F236
    ·C8051F300-GM/C8051F301-GM/C8051F302-GM/C8051F303-GM/C8051F304-GM/C8051F305-GM
    ·C8051F300-GS/C8051F301-GS/C8051F302-GS/C8051F303-GS/C8051F304-GS/C8051F305-GS
    ·C8051F310/C8051F311/C8051F312/C8051F313
    ·C8051F314/C8051F315/C8051F316/C8051F317
    ·C8051F320/C8051F321
    ·C8051F326/C8051F327
    ·C8051F330-GM/C8051F330-GP(C8051F330D)/C8051F331
    ·C8051F332/C8051F333/C8051F334/C8051F335
    ·C8051F336/C8051F337/C8051F338/C8051F339
    ·C8051F340-GQ/C8051F341-GQ/C8051F342-GQ/C8051F343-GQ/C8051F344-GQ/C8051F345-GQ
    ·C8051F346-GQ/C8051F347-GQ/C8051F348-GQ/C8051F349-GQ/C8051F34A-GQ/C8051F34B-GQ
    ·C8051F34C-GQ/C8051F34D-GQ
    ·C8051F342-GM/C8051F343-GM/C8051F346-GM/C8051F347-GM/C8051F349-GM/C8051F34A-GM
    ·C8051F34B-GM
    ·C8051F350/C8051F351/C8051F352/C8051F353
    ·C8051F360/C8051F363
    ·C8051F361/C8051F364/C8051F366/C8051F368
    ·C8051F362/C8051F365/C8051F367/C8051F369
    ·C8051F410/C8051F411/C8051F412/C8051F413
    ·C8051F500-AM/C8051F501-AM/C8051F502-AM/C8051F503-AM/C8051F504-AM/C8051F505-AM
    ·C8051F506-AM/C8051F507-AM/C8051F508-AM/C8051F509-AM/C8051F510-AM/C8051F511-AM
    ·C8051F500-AQ/C8051F501-AQ/C8051F502-AQ/C8051F503-AQ/C8051F504-AQ/C8051F505-AQ
    ·C8051F506-AQ/C8051F507-AQ
    ·C8051F500-IM/C8051F501-IM/C8051F502-IM/C8051F503-IM/C8051F504-IM/C8051F505-IM
    ·C8051F506-IM/C8051F507-IM/C8051F508-IM/C8051F509-IM/C8051F510-IM/C8051F511-IM
    ·C8051F500-IQ/C8051F501-IQ/C8051F502-IQ/C8051F503-IQ/C8051F504-IQ/C8051F505-IQ
    ·C8051F506-IQ/C8051F507-IQ
    ·C8051F520A-AM/C8051F521A-AM/C8051F523A-AM
    ·C8051F524A-AM/C8051F526A-AM/C8051F527A-AM
    ·C8051F520A-IM/C8051F521A-IM/C8051F523A-IM
    ·C8051F524A-IM/C8051F526A-IM/C8051F527A-IM
    ·C8051F530A-AM/C8051F531A-AM/C8051F533A-AM
    ·C8051F534A-AM/C8051F536A-AM/C8051F537A-AM
    ·C8051F530A-AT/C8051F531A-AT/C8051F533A-AT
    ·C8051F534A-AT/C8051F536A-AT/C8051F537A-AT
    ·C8051F530A-IM/C8051F531A-IM/C8051F533A-IM
    ·C8051F534A-IM/C8051F536A-IM/C8051F537A-IM
    ·C8051F530A-IT/C8051F531A-IT/C8051F533A-IT
    ·C8051F534A-IT/C8051F536A-IT/C8051F537A-IT
    ·C8051F540-AM/C8051F541-AM/C8051F542-AM/C8051F543-AM/C8051F544-AM/C8051F545-AM
    ·C8051F546-AM/C8051F547-AM
    ·C8051F540-AQ/C8051F541-AQ/C8051F544-AQ/C8051F545-AQ
    ·C8051F540-IM/C8051F541-IM/C8051F542-IM/C8051F543-IM/C8051F544-IM/C8051F545-IM
    ·C8051F546-IM/C8051F547-IM
    ·C8051F540-IQ/C8051F541-IQ/C8051F544-IQ/C8051F545-IQ
    ·C8051F550-AM/C8051F551-AM/C8051F552-AM/C8051F553-AM/C8051F554-AM/C8051F555-AM
    ·C8051F556-AM/C8051F557-AM
    ·C8051F550-IM/C8051F551-IM/C8051F552-IM/C8051F553-IM/C8051F554-IM/C8051F555-IM
    ·C8051F556-IM/C8051F557-IM
    ·C8051F560-AM/C8051F561-AM/C8051F562-AM/C8051F563-AM/C8051F564-AM/C8051F565-AM
    ·C8051F566-AM/C8051F567-AM/C8051F568-AM/C8051F569-AM
    ·C8051F560-AQ/C8051F561-AQ/C8051F562-AQ/C8051F563-AQ/C8051F564-AQ/C8051F565-AQ
    ·C8051F566-AQ/C8051F567-AQ
    ·C8051F560-IM/C8051F561-IM/C8051F562-IM/C8051F563-IM/C8051F564-IM/C8051F565-IM
    ·C8051F566-IM/C8051F567-IM/C8051F568-IM/C8051F569-IM
    ·C8051F560-IQ/C8051F561-IQ/C8051F562-IQ/C8051F563-IQ/C8051F564-IQ/C8051F565-IQ
    ·C8051F566-IQ/C8051F567-IQ
    ·C8051F570-AM/C8051F571-AM/C8051F572-AM/C8051F573-AM/C8051F574-AM/C8051F575-AM
    ·C8051F570-IM/C8051F571-IM/C8051F572-IM/C8051F573-IM/C8051F574-IM/C8051F575-IM
    ·C8051F580-AM/C8051F581-AM/C8051F582-AM/C8051F583-AM/C8051F584-AM/C8051F585-AM
    ·C8051F586-AM/C8051F587-AM/C8051F588-AM/C8051F589-AM
    ·C8051F580-AQ/C8051F581-AQ/C8051F582-AQ/C8051F583-AQ/C8051F584-AQ/C8051F585-AQ
    ·C8051F586-AQ/C8051F587-AQ
    ·C8051F580-IM/C8051F581-IM/C8051F582-IM/C8051F583-IM/C8051F584-IM/C8051F585-IM
    ·C8051F586-IM/C8051F587-IM/C8051F588-IM/C8051F589-IM
    ·C8051F580-IQ/C8051F581-IQ/C8051F582-IQ/C8051F583-IQ/C8051F584-IQ/C8051F585-IQ
    ·C8051F586-IQ/C8051F587-IQ
    ·C8051F590-AM/C8051F591-AM
    ·C8051F590-IM/C8051F591-IM
    ·C8051F700-GQ/C8051F701-GQ/C8051F702-GQ/C8051F703-GQ
    ·C8051F704-GQ/C8051F705-GQ/C8051F706-GQ/C8051F707-GQ
    ·C8051F708-GQ/C8051F709-GQ/C8051F710-GQ/C8051F711-GQ
    ·C8051F712-GQ/C8051F713-GQ/C8051F714-GQ/C8051F715-GQ
    ·C8051F704-GM/C8051F705-GM/C8051F706-GM/C8051F707-GM
    ·C8051F712-GM/C8051F713-GM/C8051F714-GM/C8051F715-GM/C8051F716-GM/C8051F717-GM
    ·C8051F800-GM/C8051F801-GM/C8051F802-GM/C8051F806-GM/C8051F807-GM/C8051F808-GM
    ·C8051F800-GU/C8051F801-GU/C8051F802-GU/C8051F806-GU/C8051F807-GU/C8051F808-GU
    ·C8051F803-GS/C8051F804-GS/C8051F805-GS/C8051F809-GS/C8051F810-GS/C8051F811-GS
    ·C8051F812-GM/C8051F813-GM/C8051F814-GM/C8051F818-GM/C8051F819-GM/C8051F820-GM
    ·C8051F812-GU/C8051F813-GU/C8051F814-GU/C8051F818-GU/C8051F819-GU/C8051F820-GU
    ·C8051F815-GS/C8051F816-GS/C8051F817-GS/C8051F821-GS/C8051F822-GS/C8051F823-GS
    ·C8051F824-GS/C8051F825-GS/C8051F826-GS/C8051F827-GS/C8051F828-GS/C8051F829-GS
    ·C8051F830-GS/C8051F831-GS/C8051F832-GS/C8051F833-GS/C8051F834-GS/C8051F835-GS
    ·C8051F901-GM/C8051F902-GM
    ·C8051F901-GU/C8051F902-GU
    ·C8051F911-GM/C8051F912-GM
    ·C8051F911-GU/C8051F912-GU
    ·C8051F920-GM/C8051F920-GQ/C8051F921-GM
    ·C8051F930-GM/C8051F930-GQ/C8051F931-GM
    ·C8051F980-GM/C8051F981-GM/C8051F982-GM/C8051F983-GM
    ·C8051F985-GM/C8051F986-GM/C8051F987-GM/C8051F988-GM/C8051F989-GM
    ·C8051F986-GU/C8051F987-GU/C8051F988-GU/C8051F989-GU
    ·C8051F990-GM/C8051F991-GM/C8051F996-GM/C8051F997-GM
    ·C8051F996-GU/C8051F997-GU
    ·CP2501-GM
    ·Si1000/Si1001/Si1002/Si1003/Si1004/Si1005
    ·Si1010/Si1011/Si1012/Si1013/Si1014/Si1015
    ·Si4010-GT/Si4010-GS
    ·Si8250-IQ/Si8250_IM/Si8251-IQ/Si8251-IM/Si8252-IQ/Si8252-IM

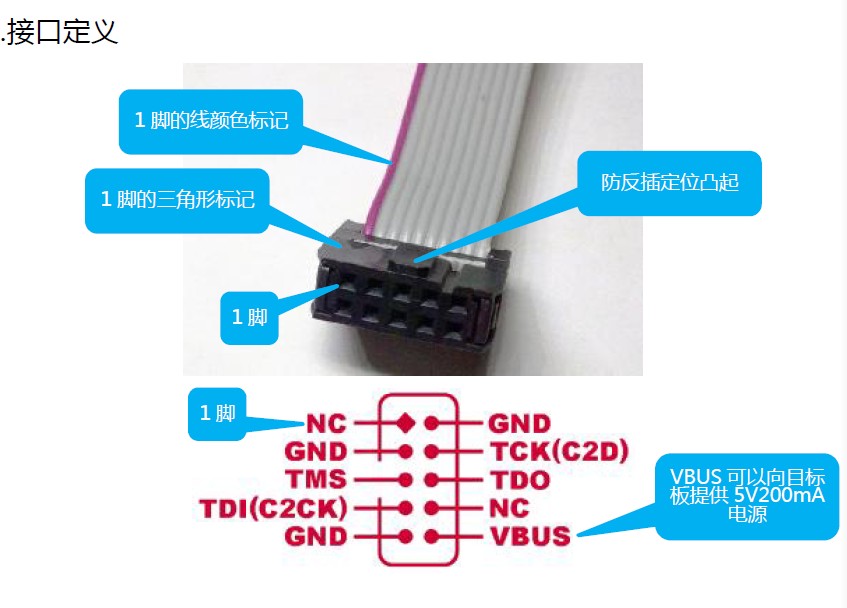

     接口定义(兼容并口线和USB线标准):

     1 - VTAR(目标板接口电源)

      2,3, 9 - GND

     4 - TCK(C2D)

     5 - TMS

    6 - TDO

     7 - TDI(C2CK)

    8 - NC

    10 - VBUS(往目标板供5V200mA)

    · 功能、性能

    - 编程功能:可实现单步、连续单步、断点、停止/运行,支持寄存器/存储器的观察和修改,下载程序到Flash存储器等功能

    优势:

    1.与Silabs的USB Debug Adaptor和EC3/EC5调试器完全兼容,支持JTAG/C2模式,固件可升级,WinMe以上系统免驱动,支持 IAR,Keil,Silabs IDE 等调试软件

    2.USB接口

    3.体积小巧,便于携带

    4.下载线第十脚向目标板提供5V 200mA的电源,方便调试

    5.接口电平由目标板决定,做到1.8V~5V自适应

    · 采用USB接口连接PC机
    - USB 2.0接口,硬件加强型保护功能(减少使用不当造成的硬件损坏率)

    · 与其他品牌下载器对比


      U-EC5 ML-EC3 其他牌子调试器 本调试器
    USB接口
    USB接口保护
    输出驱动 × √ or ×
    支持断点数 4个 4个 2-3个 4个
    外部供电 × 100-200mA 近5V/200mA or × 近5V/500mA
    适配线数 1条 1条 1条 2条

    · 与目标板的连接接口
    - 采用C8051F专用的JTAG / C2标准接口

    · 固件可升级
    - 通过Silabs公司的软件,可以固件升级,使本产品支持Silabs公司后续生产的C8051F MCU系列产品
    - 升级方式为自动升级,Silabs公司会提供升级程序



    · USB供电
    - 当使用USB连接PC机时,调试器自身由USB供电,可直接对目标板进行供电



    【发货清单】



    1. USB Debug Adaptor C8051 仿真器                        1台
    2. USB数据线(带磁环)                                            1条
    3. 10芯JTAG下载电缆2.54mm,20cm                           1条
    4. 资料和软件光盘一张(赠送独家编写的简单易用软件)1张
